CWNS型低氮常压燃气(油)热水锅炉
容      量:1—20蒸吨
热 效 率:≥95%
适用燃料:燃油,燃气
应用范围:产品广泛应用于化工、油脂、石化、纺织、印染、塑胶、纤维、碳素、造纸、印刷、木材、食品、酿造暖气空调等行业。​
简      介:CWHS型低氨系列常压燃气(油)热水锅炉是卧式内燃绿皆式锅壳锅炉,其主要结构由锅壳、炉胆,火箱、一口程烟管。一回程烟管、前后烟箱等组成。适用轻油、重油、城市煤气、天然气等气体、液体燃料。
0371-66362555
18839785775
热效率≥95%
A级锅炉企业
远程操作管理服务
1万多用户放心选择


CWNS型低氮常压燃气(油)热水锅炉

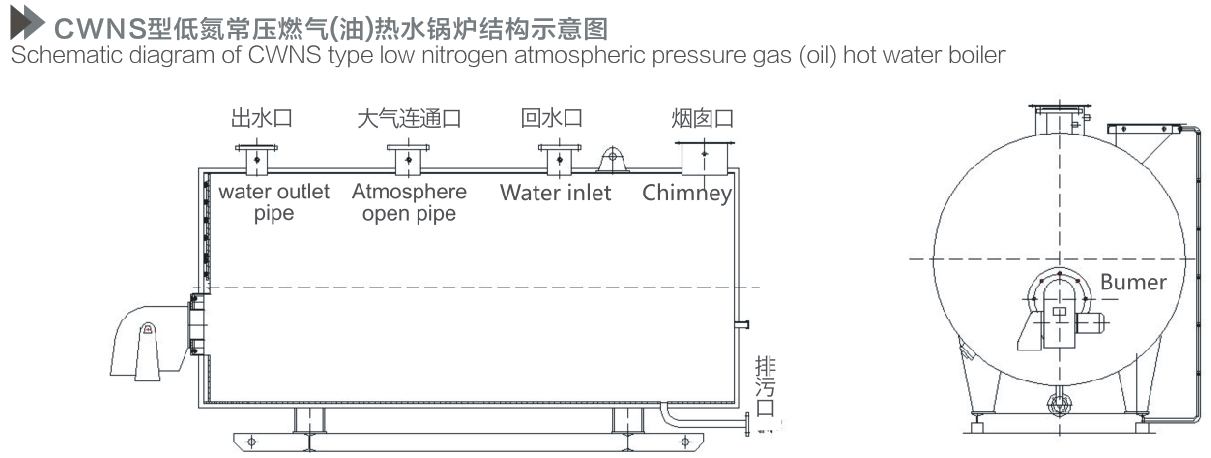

CWHS型低氨系列常压燃气(油)热水锅炉是卧式内燃绿皆式锅壳锅炉,其主要结构由锅壳、炉胆,火箱、一口程烟管。一回程烟管、前后烟箱等组成。适用轻油、重油、城市煤气、天然气等气体、液体燃料。
CWHS series low nitrogen atmospheric pressure gas(oi hat water boiler isa horizontal internal cambustion wet back shell boiler. The main structure is composed of a pot shell, a furnace liner, a fire box,a one-pass smoke pipe,atwo-pass smoke pipe, and front and rear smoke boxes. Sultable for gas and liquid fuels such as light oil, heaw oilcity gas and natural gas.
特性描述
Characterstic description
燃烧室采用了波形炉胆或直形炉胆、对接焊缝,湿背式结构,避免了后管板受高温烟气冲刷易烧坏的特点,确保锅炉安全。
烟气三回程设计,烟管采用螺纹烟管,内插扰流子,增加了对流传执面积和增强传执效果,星部烟道可增设冷凝换热器降低排烟温度,吸收烟气中的显热和潜热,从而提高锅炉的热效率(达95%)。
锅炉主体严格按照JB/T7985-2002《小型和常压热水锅炉通用技术条件》及其相关标准生产制作/检验,品质精良。出厂前做静态压力试验和热态试验,
采用整机进口燃烧器,压力雾化,燃烧完全,噪音低,安全高效目环保指标均符合国家要求。锅炉本体与膨胀水箱相连,膨胀水箱直通大气,常压下运行,无安全隐患。
运行实现全自动控制,对出口水温自动调节,锅炉自动点火程序启动,配有缺水、过热、熄火等多种报警联锁保护装置确保锅炉高效、安全、可靠运行。
结构紧凑,外形美观,整体快装出厂,运输安装方便,
广乏应丰于宾馆、住宅,别野,写字楼,休闲娱乐场所的米暖和生活热水的供应
1. The combustion chamber adopts a corrugated furnace or straignt furnace.but welded seam. and a wet back structure, which avoids the characteristics of easy burnout of the rear tube plate by high-temperature fiue gas erosion and ensures the satety of the boiler.
2. The flue gas three-pass design, the flue pipe adopts a threaded flue pipe, and a spoiler is inserted to increase the convective heat transfer area and enhance the heat transfer effect. The tail flue can be equipped with a condensing heat exchanger to reduce the exhaust gas temperature, absorb the sensible heat and latent heat in the fiue gas, thereby increasing the thermal efficiency of the bcier (up to 96%)
3. The main body of the boiler is producedhinspected strictly in accordance withJB/17985-2002 General Technical Conditions for Smal and Atmospheric Hot Water Boilers and related standards. and is of excellent aualityDo static pressure test and thermal test before leavina the factory
4. it adopts the imported burmer of the whole machine,pressure atomizationcomplele combustion, low noise.safety and efficiency, and environmental pratection indicalors meetnationalreouiements.
5. The bo er body is connected with the expansion water tank, and the expansion water tank is directly connected to the atmosphere. It runs under normal pressure and has no satety hazards
6. The boller operation realizes automatic control. the outet water temoerature is automatically adusted, the boter automatic ianition proaram is started. and i is equipped with multiple alarm interlock protection devices such as water shortage overheating, and flameout to ensure efficient, safe and rellable operation of the boiler.
7.The structure is compact, the appearance is beautifu the whole isquick-installed, and the transportation and installation are convenient
8. it is widely used in heating and domestic hot water supply in hotels residences, villas, office buildings teisure and entertainment places




低氮常压热水锅炉技术参数

                  型号

项目              参数

CWNS 0.7-80/60

-Q

CWNS1.4-80/60

-Q

CWNS2.1-80/60

-Q

CWNS 2.8-80/60

-Q

CWNS3.5-80/60

-Q

CWNS4.2-80/60

-Q)

CWNS7-80/60

-Q

CWNS14-80/60

-Q

额定热功率

MW

0.7

1.4

2.1

2.8

3.5

4.2

7

14

工作压力

MPa

常压

/回水温度

80/60

热效率

%

94(低温工况时>96;低温工况带冷凝器时>103

燃气耗量

Nm3/h

75.3

152.1

229

302.9

372.5

446.8

757.7

1516.6

出水管DN

mm

100

125

150

150

150

200

250

300

回水管DN

mm

100

125

150

150

150

200

250

300

烟囱直径

mm

300

350

400

400

600

600

800

1000

锅炉运输重量

kg

2669.3

4087.4

4914.6

6478.8

8293.1

9721

17266.7

30610.4

最大运输尺寸

mm

3263

3823

4263

4763

4933

5233

7030

8032

mm

1520

1680

1862

1960

2070

2070

2460

3024

mm

2082

2196

2421

2471

2612

2612

3000

3628

天然气耗量是以低位发热值8600Kcal/Nm3计算,轻油耗量是以10263Kcal/kg进行计算。

 注:表中数据及图片仅供参考,产品以实物为准,如因改机型而变更恕不另行通知。

供热行业案例 / 供热行业解决方案
更多供热行业案例>>

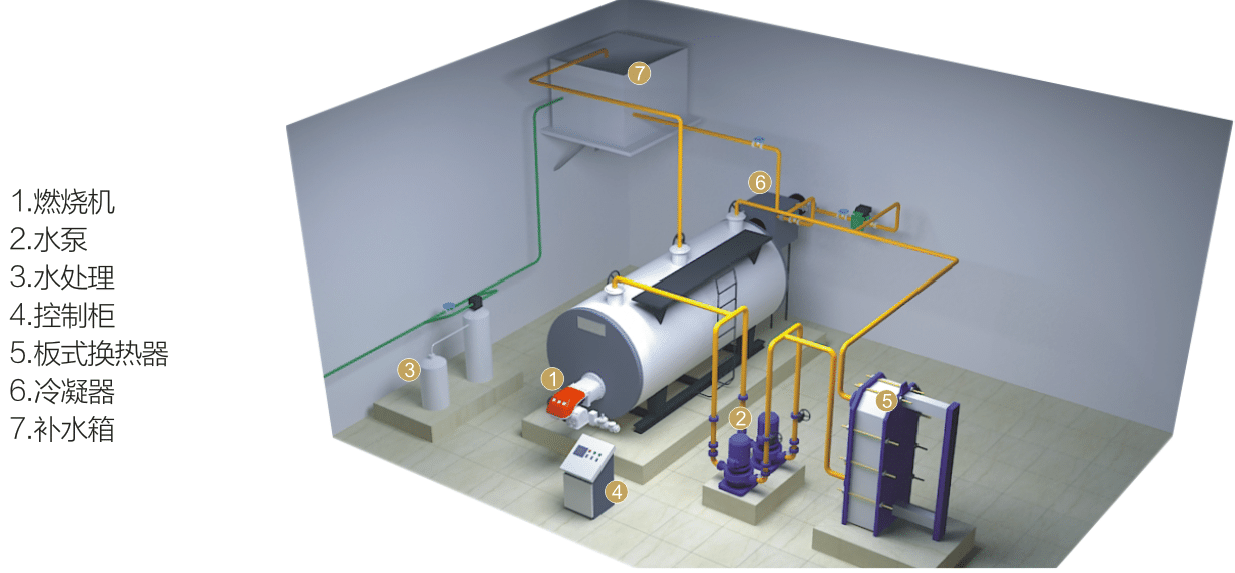

锅炉供热主要是水通过进水口进入锅炉,经过锅炉加热后的符合供热标准的水质通过循环水泵送入室内散热器,通过辐射和对流换热来供暖。近年来锅炉房在城市集中供热的比重不断上升。虽然,目前我国集中供 热所用能源仍以煤炭为主,但是随着我国环保意识的增强,部分地方政府限制小型燃煤锅炉的使用,燃气锅炉的使用越来越普遍。
